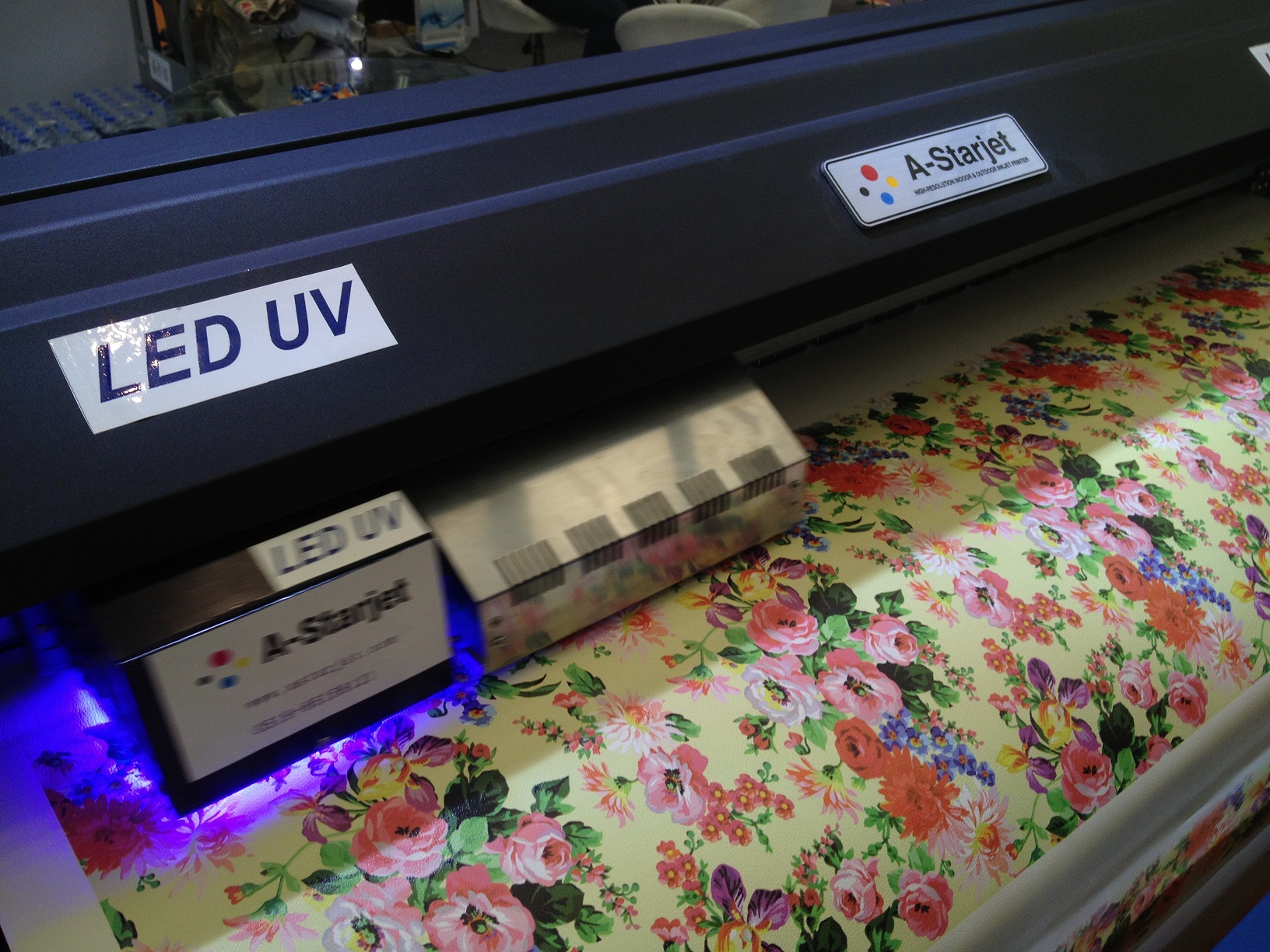

2 pcs Epson printhead UV LED Inkjet Printer , 1.8m printer for
Leather and PU, CE
Roll to Roll version UV printer which is one of our new stable
printers since 2012. UV printer is dedicated in upscale market,
providing the best performance in advertisement.
The distinct characteristic is that UV printer use UV Curing ink
which dried on the surface of the materials to instead of eroding
into the materials, so it can provide more vivid and colorful
pictures. By this distinct feature, UV printer is able to print on
any kind of material, especial for leather, PU, curtain Fabric,
wall paper, transparent materials and so on.
Quick Detail:
Type: inkjet printer | Brand Name: A-Starjet |
Place of Origin: Changzhou | Automatic Grade: Automatic |
Usage: digital UV printer | Certification: CE |
Voltage: AC 100-220V | Model: 7702 UV |
Weight: 385 kgs | Color: CMYK |
Keyword: UV printer | After-sales Service: Yes |
Specifications:
Item | A- Starjet 7702 UV |
Print head | One DX7 print heads |
Number of nozzles | 1440 nozzles per head |
Color | 4 Colors: Cyan, Magenta, Yellow, Black |
Resolution | 1440dpi(max) |
Height of print head | 2～5mm |
Size of ink droplet | 1.5～21pl |
Printing width | 1700mm |
Speed | 3pass 42.0sq.m per hour 4pass 32sq.m per hour 6pass 19sq.m per hour 8pass 13.8sq.m per hour |
Media width | 1900mm |
Media take up | Yes |
Media feeder | Option |
Media payload | 70kgs |
Heating system | Print heater and Post heater with PID temperature control
temperature range:room temperature to 80℃ |
Ink | CMYK White/Grossy Ink(Special color) |
Ink cartridge | 8×350ML continuous ink supply, Optional bulk system |
Rip software | iPrint3.0 16bit(Optional Photoprint,Wasatch) |
Control software | Print console |
Operation system | MS Windows XP ﹠ Windows 7 |
Interface | USB port ver2.0 |
Power voltage | AC 220～240V 50～60Hz or AC 110～120V 50～60Hz |
Printing environment | Temperature:20～25℃,humidity:40-60% |
Printer dimension | W2840×D900×H1250mm |
Packing dimension | W2920×D930×H730mm |
Net weight | 245kgs |
Gross weight | 385kgs |
Competitive Advantage:
1. Print Heads: 1 pcs Epson DX7 print heads, each print head has
1440 nozzles. Currently Epson is not encrypted for DX7, so the
buyer no need to worry about the print head when he / she buy this
kind machine.
2. Printing Width: the maximum width can be up to 1.7M / 67 Inch.
3. The only step need for adjust the print heads is to insert the
print head into the carriage. It doesn’t need to be adjusted for
several times and dairy maintenance is quite easy and can be
learned quickly.
4. UV ink curing on surface instead of absorb by media, provide
vividness, sharpness. Suit for most media including leather,
fabric, semi-rigid semi- rigid. UP to 1440Dpi provides finest
details.
After Sale service:
we have senior engineer to do the online after sales service in
Skype, Whatsapp, Wechat and so on, so every customer can feel
assured to do business with us and our factory.
