Dx7 Heads Dye Sublimation Textile Printer 1.8m Print On Transfer
Paper And Textile Directly
Detailed Product Description
| Model Number: | A Starjet 7702+heater | Keyword: | Dye Sublimation Printer |
| Color: | CMYK/CMY | Print Head: | Two DX7 Print Head |
| Certification: | CE | Resolution: | 1440Dpi |
Introduction
1. Techinical
As the advanced version of the DX5 head , DX7 head stands for the
better reliability and stability. Besides
better ink droplets and consistency, the working life of the print
head has improved dramatically. The Dx7 is much more durable than
Dx5 for the eco-solvent ink printing. A-Starjet 7702/7703 printer
is equipped with two/three high efficient DX-7 print heads, and it
is proved to have 15-25% print speed increasing.
2. Mechanical Precision
Inheriting A-Starjet’s strict qulity control on mechanical
precision.The precision-machined service station and carriage makes
it eay for head cleaning, head preserve. It result the printing
will be stable and also prolong heads’ life time.
3. User Friendly
Free supplied 16bit IPrint Rip system, easy to use and we keep
updating for our clients. 3rd party ICC
canbe used, provides best color rendition.
Specifications:
Item | A- Starjet 7702+heater |
Print head | two DX7 print head |
Number of nozzles | 1440 nozzles per head |
Color | 4 Colors:Cyan,Magenta,Yellow,Black |
Resolution | 1440dpi(max) |
Height of print head | 2～5mm |
Size of ink droplet | 1.5～21pl |
Printing width | 1800mm |
Speed | 3pass: 34.5sq.m per hour 4pass: 26.5sq.m per hour 6pass: 17.0sq.m per hour 8pass: 13.0sq.m per hour |
Media width | 1900mm |
Media take up | Yes |
Media feeder | Option |
Media payload | 70kgs |
Heating system | Print heater and Post heater with PID temperature control
temperature range:room temperature to 80℃ |
Ink | T5.5 eco-solvent ink ST5.5 water-based dye ink T7 reactive printing ink |
Ink cartridge | 8×350ML continuous ink supply, Optional bulk system |
Rip software | iPrint3.0 |
Control software | Print console |
Operation system | MS Windows XP ﹠ Windows 7 |
Interface | USB2.0 |
Power voltage | AC 220～240V 50～60Hz or AC 110～120V 50～60Hz |
Printing environment | Temperature:20～25℃,humidity:40-60% |
Printer dimension | W2840×D900×H1250mm |
Packing dimension | W2920×D980×H700mm |
Net weight | 220kgs |
Gross weight | 300kgs |
Description:
Regarding the dye sublimation printer, it is printer body +
sublimation heater version which is quite welcomed by our agent in
Turkey and Greece, in Instanbul we have an end-user who has our 4
sets 1.8M sublimation printer in their office.
- The Seventh-Generation(DX7) Micro Piezo Printing Technology
- Expertise on High Precision Large Format Printer Manufacturing
- Dx7 Micro Piezo Printing Technology
- Dual Print Head Design
- Comprehensive Media Handling
- 1.8m Printer also Available
Applications:
1.PVC Type
Flex Banner, Knife Coated Substrate, Double Side Printing Banner
PVC, Advertising Cloth, Adhesive Vinyl, One Way Vision, Mesh,
Reflective, Banner, Reflective Vinyl.
2. Eco-solvent Inkjet Media
Fabric:Flex Banner, Polyester Canvas, Pure Cotton Canvas and so on.
Wall Paper:Wall Paper with PVC on the surface, pure paper Wall Paper, wall
paper with fabric on the surface, wall paper with fiber on the
surface.

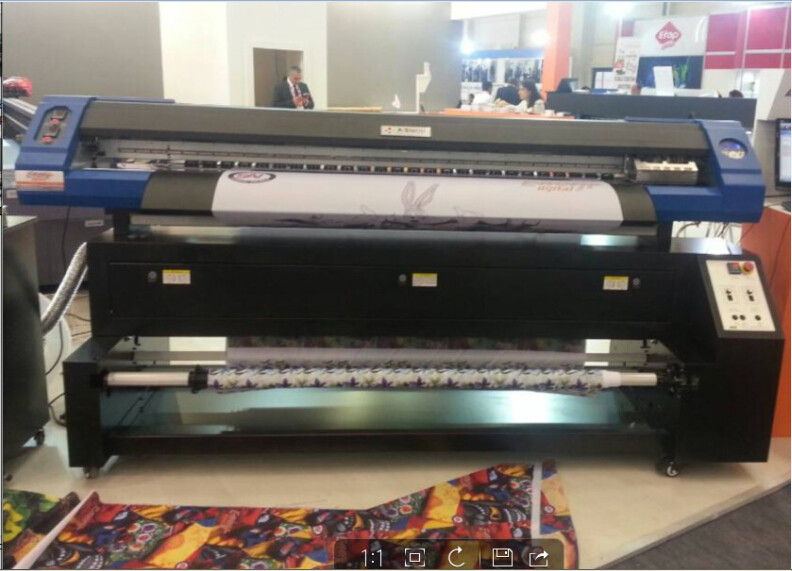

A-Starjet Sublimation Printer
